DE Detail View

Overview

The detailed Drive Enclosure (DE) information is displayed.

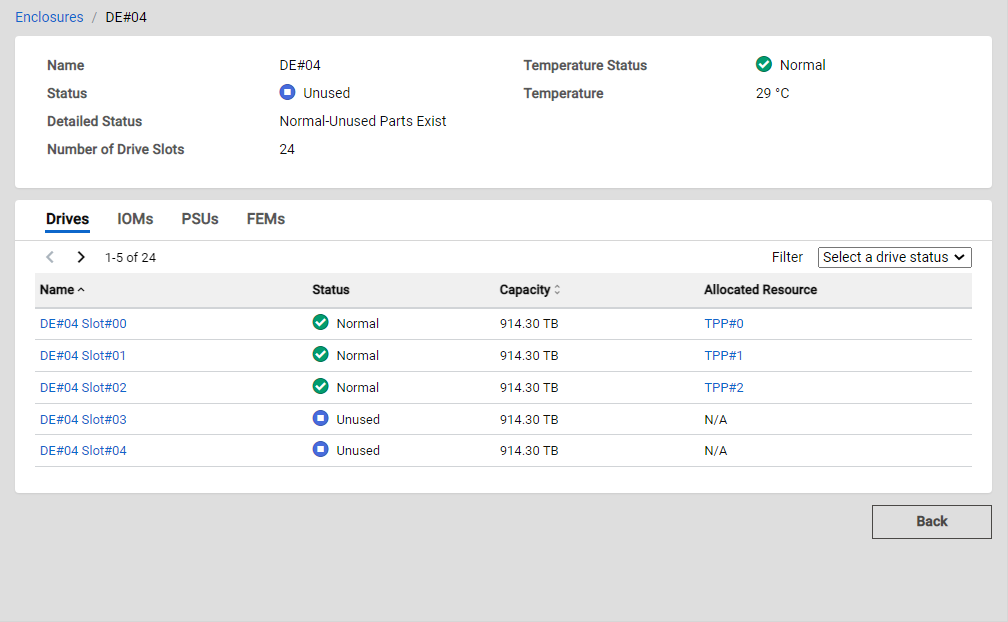

Screenshots

Actions

Icon/Button Description

Back

Displays the previous screen.

Caution

  • To return to the previous screen, use this button instead of the [Back] button on the browser.

    Using the [Back] button on the browser may cause unexpected behavior.

Enclosures/ xxx

Click "Enclosures" to display its List View.

"xxx" indicates the name of the currently displayed enclosure.

Drive Information

Icon/Button Description

< > X - Y of Z

Changes the List page.

Click the left arrow icon to return to the previous page.

Click the right arrow icon to proceed to the next page.

The location of the currently displayed resource and the total number of resources are also displayed.

X: The start point of the currently displayed list element.

Y: The end point of the currently displayed list element.

Z: The total number of elements.

Display Items

Basic Information

Parameter Name Description

Name

The enclosure name is displayed.

Status

The enclosure status is displayed.

  • Normal

    Normal state.

  • Unused

    Unused state.

  • Maintenance

    Maintenance state.

  • Warning

    Preventive maintenance is required.

  • Error

    An error occurred and maintenance is required.

Detailed Status

The detailed enclosure status is displayed.

  • Normal

    The component is operating normally.

  • Unconnected

    A faulty component exists in the enclosure.

  • Undefined

    The component is installed, but not used.

  • Undefined-Error Parts Exist

    The component, which is not being used, is in the error state.

  • Normal-Unused Parts Exist

    There is an unused component that is installed in the enclosure.

  • Maintenance

    The component is under maintenance.

  • Warning

    The component requires preventive maintenance.

  • Error

    An error has occurred in the component.

Number of Drive Slots

The maximum number of drives that can be installed is displayed.

Temperature Status

The ambient temperature status is displayed.

  • Normal

    Normal state.

  • Unused

    Unused state.

  • Maintenance

    Maintenance state.

  • Warning

    Preventive maintenance is required.

  • Error

    An error occurred and maintenance is required.

Temperature

The ambient temperature is displayed.

The unit is "°C".

Information

  • When the information cannot be obtained due to a sensor failure, "0" is displayed.

Drive Information

Parameter Name Description

Name

The drive name is displayed.

Click a drive name to display its Detail View.

Status

The drive status is displayed.

  • Normal

    Normal state.

  • Unused

    Unused state.

  • Maintenance

    Maintenance state.

  • Warning

    Preventive maintenance is required.

  • Error

    An error occurred and maintenance is required.

Capacity

The capacity of the drive is displayed.

The capacity is displayed up to the second decimal place with the appropriate "GB" or "TB" unit.

It may differ from the product's actual capacity.

Allocated Resource

The name of the Thin Provisioning Pool, Flexible Tier Pool, or RAID group that is configured by the drive is displayed.

For Dedicated Hot Spares, the RAID group name where the Dedicated Hot Spare is registered is displayed.

For Thin Provisioning Pools, click a pool name to display its Detail View.

Information

  • "N/A" is displayed for the following cases.

    • Unused drives

    • For tenant users, drives that do not configure the resources that belong to the current user's tenant.

IOM Information

Parameter Name Description

Name

The IOM name is displayed.

Status

The IOM status is displayed.

  • Normal

    Normal state.

  • Unused

    Unused state.

  • Maintenance

    Maintenance state.

  • Warning

    Preventive maintenance is required.

  • Error

    An error occurred and maintenance is required.

PSU Information

Parameter Name Description

Name

The PSU name is displayed.

Status

The PSU status is displayed.

  • Normal

    Normal state.

  • Unused

    Unused state.

  • Maintenance

    Maintenance state.

  • Warning

    Preventive maintenance is required.

  • Error

    An error occurred and maintenance is required.

FEM Information

Parameter Name Description

Name

The FEM name is displayed.

Status

The FEM status is displayed.

  • Normal

    Normal state.

  • Unused

    Unused state.

  • Maintenance

    Maintenance state.

  • Warning

    Preventive maintenance is required.

  • Error

    An error occurred and maintenance is required.

Filters

Drive Information

Parameter Name Description

Select a drive status

Select the status of the drive that is to be displayed in the list.

The drives that are in the selected status are displayed in the list.

If no statuses are selected, the list will not be filtered by status. No statuses are selected by default.

  • Normal

    Drives in the "Normal" state are displayed.

  • Unused

    Drives in the "Unused" state are displayed.

  • Maintenance

    Drives in the "Maintenance" state are displayed.

  • Warning

    Drives in the "Warning" state are displayed.

  • Error

    Drives in the "Error" state are displayed.
