CA Port Detail View

Overview

The detailed CA port information is displayed.

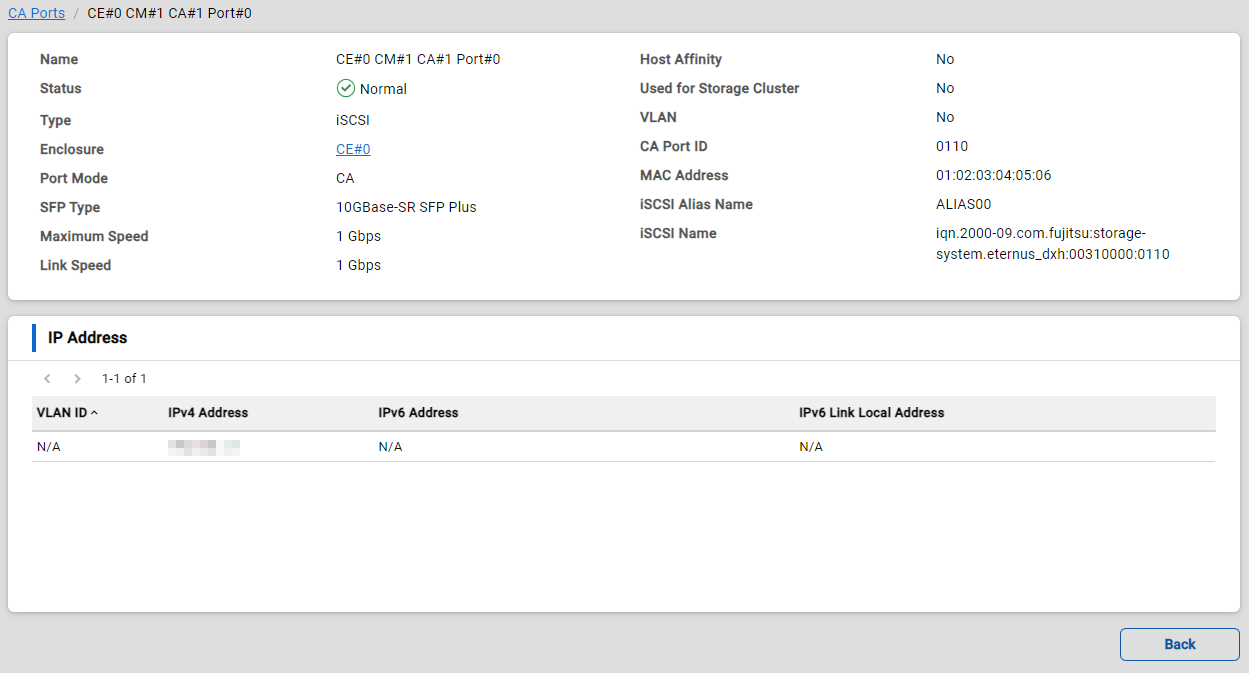

Screenshots

Actions

Icon/Button Description

Back

Displays the previous screen.

Caution

  • To return to the previous screen, use this button instead of the [Back] button on the browser.

    Using the [Back] button on the browser may cause unexpected behavior.

CA Ports/ xxx

Click "CA Ports" to display CA Port List View.

"xxx" indicates the name of the currently displayed CA port.

IP Address Information

Icon/Button Description

< > X - Y of Z

Changes the List page.

Click the left arrow icon to return to the previous page.

Click the right arrow icon to proceed to the next page.

The location of the currently displayed resource and the total number of resources are also displayed.

X: The start point of the currently displayed list element.

Y: The end point of the currently displayed list element.

Z: The total number of elements.

Display Items

Basic Information

Parameter Name Description

Name

The CA port name is displayed.

Status

The CA port status is displayed.

  • Normal

    Normal state.

  • Unused

    Unused state.

  • Maintenance

    Maintenance state.

  • Warning

    Preventive maintenance is required.

  • Error

    An error occurred and maintenance is required.

Type

The interface type of the CA port is displayed.

  • FC

    FC interface ports

  • iSCSI

    iSCSI interface ports

  • FCLINK

    Mainframe interface ports

Enclosure

The enclosure name in which the CA port is installed is displayed.

Click an enclosure name to display its Detail View.

Port Mode

The operation mode of the CA port is displayed.

  • CA

    Host connection mode

  • RA

    REC connection mode

  • Initiator

    FC initiator mode

  • CARA

    Host connection mode and REC connection mode

SFP Type

The SFP type of the CA port is displayed.

  • 16G SWL SFP Plus

    16G Short Wave Laser SFP+

  • 32G SWL SFP Plus

    32G Short Wave Laser SFP+

  • 64G SWL SFP Plus

    64G Short Wave Laser SFP+

  • 10GBase-SR SFP Plus

    10GBase-SR SFP+

  • 10GBase-CU SFP Plus

    10GBase-CU SFP+ (Twinax)

  • 16G LWL SFP Plus

    16G Long Wave Laser SFP+

  • 32G LWL SFP Plus

    32G Long Wave Laser SFP+

Maximum Speed

The maximum transfer speed of the CA port is displayed.

The unit is "Gbps".

Link Speed

The link status of the CA port is displayed.

The unit is "Gbps".

Information

  • This item is not displayed when "Type" is other than "FC" or "iSCSI".

  • For linkdown, "0" is displayed.

Host Affinity

Whether the host affinity mode is enabled for the CA port is displayed.

  • Yes

    The affinity mode is "Enable".

  • No

    The host affinity mode is "Disable" and the connection setting is not available.

Information

  • This item is not displayed when "Type" is other than "FC" or "iSCSI".

  • "N/A" is displayed when "Port Mode" is other than "CA" or "CARA".

Used for Storage Cluster

Whether the CA port is used for the Storage Cluster function is displayed.

  • Yes

    The CA port is used for the Storage Cluster function and the connection setting is not available.

  • No

    The CA port is not used for the Storage Cluster function.

Information

  • This item is not displayed when "Type" is other than "FC" or "iSCSI".

  • "N/A" is displayed when "Port Mode" is other than "CA" or "CARA".

VLAN

Whether the VLAN function is enabled or disabled is displayed.

  • Yes

    The VLAN function is enabled.

  • No

    The VLAN function is disabled.

Information

  • This item is not displayed when "Type" is other than "iSCSI".

CA Port ID

The CA port identifier that is used for RESTful API is displayed.

MAC Address

The MAC address of the CA port is displayed.

Information

  • This item is not displayed when "Type" is other than "iSCSI".

iSCSI Alias Name

The iSCSI Alias name is displayed.

Information

  • This item is not displayed when "Type" is other than "iSCSI".

iSCSI Name

The iSCSI name is displayed.

Information

  • This item is not displayed when "Type" is other than "iSCSI".

WWPN

The World Wide Port Name is displayed.

Information

  • This item is not displayed when "Type" is other than "FC".

IP Address Information (only for iSCSI)

Parameter Name Description

VLAN ID

The VLAN ID of the CA port is displayed.

Information

  • "N/A" is displayed when the VLAN function is disabled.

IPv4 Address

The IP address (IPv4) of the CA port is displayed.

Information

  • "N/A" is displayed when IPv4 is not used.

IPv6 Address

The connect IP address (IPv6) of the CA port is displayed.

Information

  • "N/A" is displayed when IPv6 is not used.

IPv6 Link Local Address

The link local address (IPv6) of the CA port is displayed.

Information

  • "N/A" is displayed when IPv6 is not used.
