For the ETERNUS DX900 S6

  • Hot spare selection criteria (search order for drive enclosures)

    Drive enclosures that meet the following criteria are searched.

    Table: Hot Spare Selection Criteria – Search Order for Drive Enclosures (ETERNUS DX900 S6)

    Priority order

    Selection criteria

    1

    • DEs on the same path as the failed drive

    • DEs that are different from the one with the member drive

    2

    • DEs in CEs that are different from the one with the failed drive

    • DEs in CEs that are different from the one with the member drive

    3

    • DEs in the same CE with the failed drive

    • DEs on paths that are different from the failed drive

    • DEs on paths that are different from the member drives

    4

    • DEs in CEs that are different from the one with the failed drive

    • DEs in the same CE with the member drive

    • DEs on paths that are different from the member drives

    5

    • DEs on the same paths as the member drives

  • Hot spare selection criteria (drives)

    Drives that meet the following criteria are searched.

    Table: Hot Spare Selection Criteria – Drives (ETERNUS DX900 S6)

    Priority order

    Selection criteria

    1

    A hot spare with the same type, same capacity, and same rotational speed (for disks) as the failed drive (*1)

    2

    A hot spare with the same type and same rotational speed (for disks) as the failed drive but with a larger capacity (*1) (*2)

    3

    A hot spare with the same type and same capacity as the failed drive but with a different rotational speed (for disks) (*1)

    4

    A hot spare with the same type as the failed drive but with a larger capacity and a different rotational speed (for disks) (*1) (*2)
    *1 :

    If multiple drives are applicable, priority is given to the drives in ascending order of the DE-ID and the drive slot number among the drive enclosures with cascade connections.
    *2 :

    When there are multiple hot spares with a larger capacity than the failed drive, the hot spare with the smallest capacity among them is used first.

    The following figure shows an example of the search order for drive enclosures if a drive fails in the ETERNUS DX900 S6 when the RAID group is configured across controller enclosures.

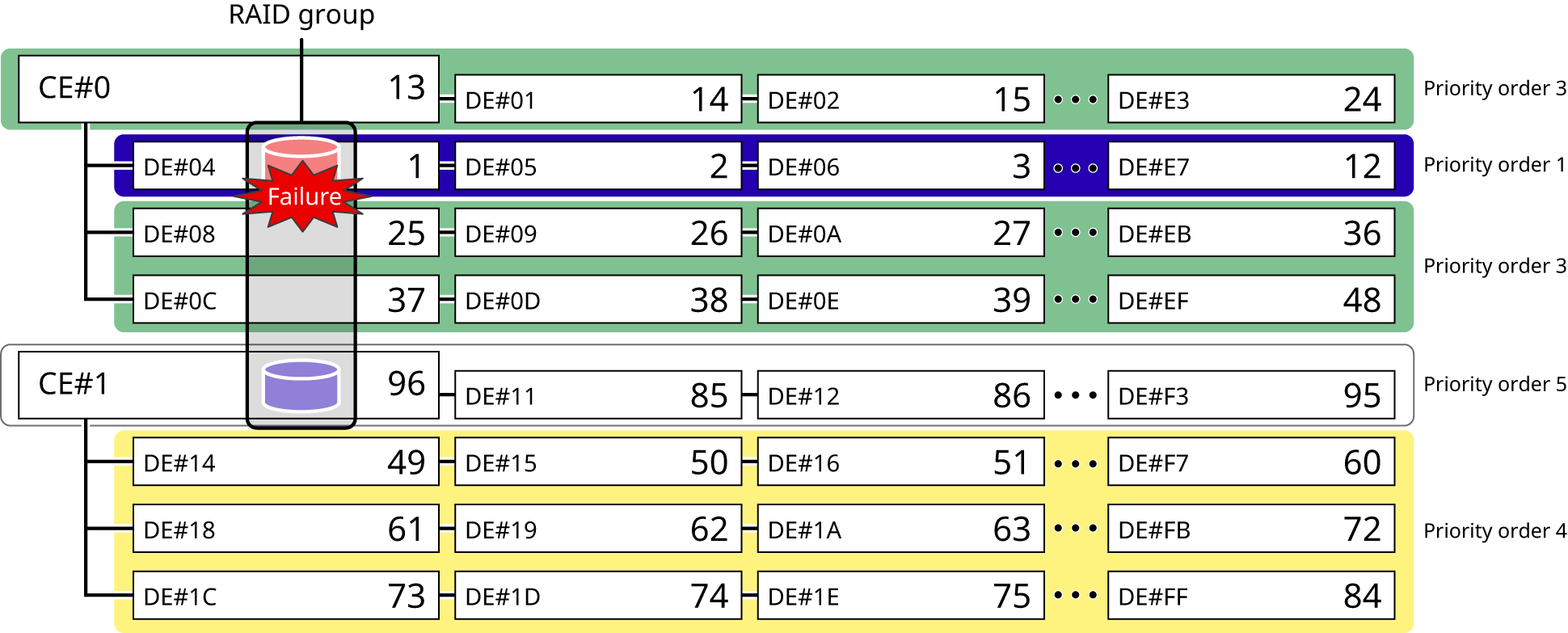

    Figure: Hot Spare Selection Criteria – Search Order for Drive Enclosures (ETERNUS DX900 S6, Example 1)

    Search order (order of priority described in Table: Hot Spare Selection Criteria – Search Order for Drive Enclosures (ETERNUS DX900 S6))

    :

    Priority order 1

    :

    Priority order 2

    :

    Priority order 3

    :

    Priority order 4

    :

    Priority order 5

    The following figure shows an example of the search order for drive enclosures if a drive fails in the ETERNUS DX900 S6 when the RAID group is configured with the same controller enclosure.

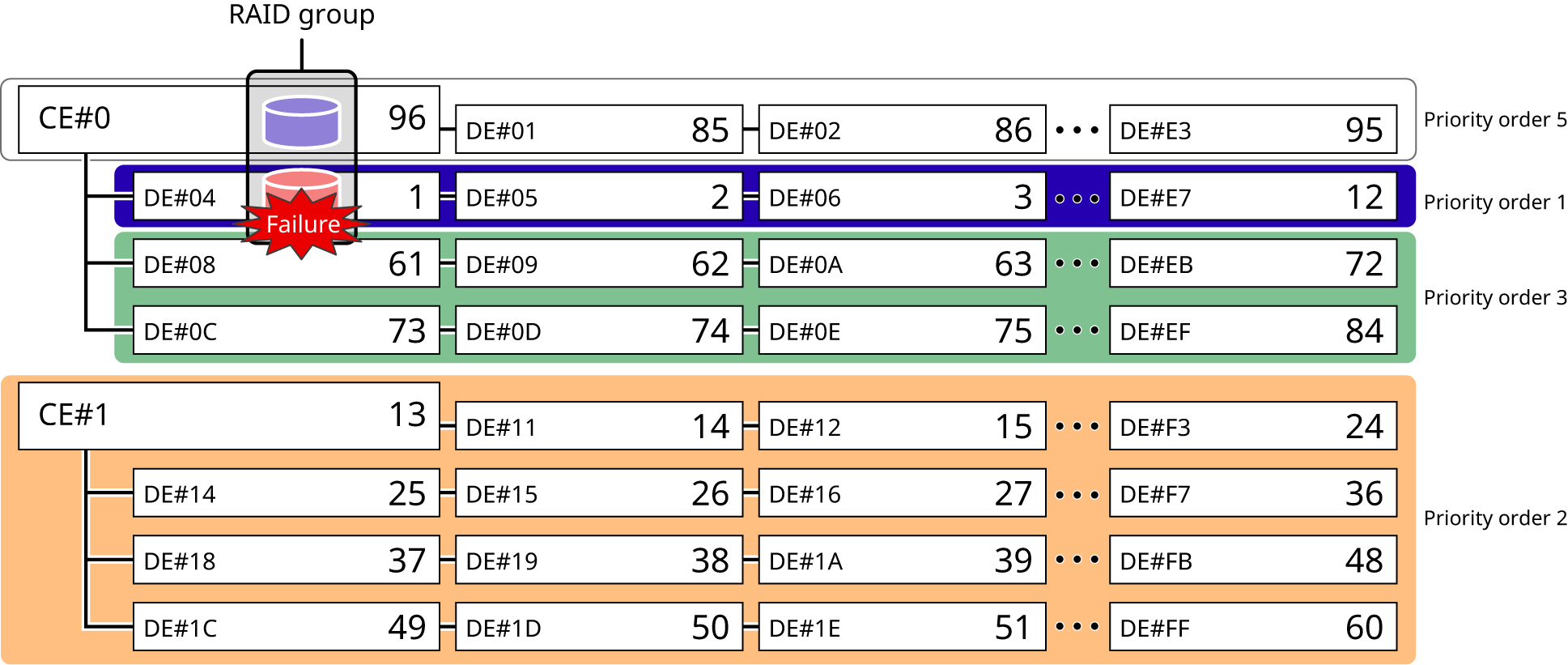

    Figure: Hot Spare Selection Criteria – Search Order for Drive Enclosures (ETERNUS DX900 S6, Example 2)

    Search order (order of priority described in Table: Hot Spare Selection Criteria – Search Order for Drive Enclosures (ETERNUS DX900 S6))

    :

    Priority order 1

    :

    Priority order 2

    :

    Priority order 3

    :

    Priority order 4

    :

    Priority order 5
