Connection Configurations

For the ETERNUS DX, two IP addresses are required (one IP address for the MNT port and one IP address for the RMT port).

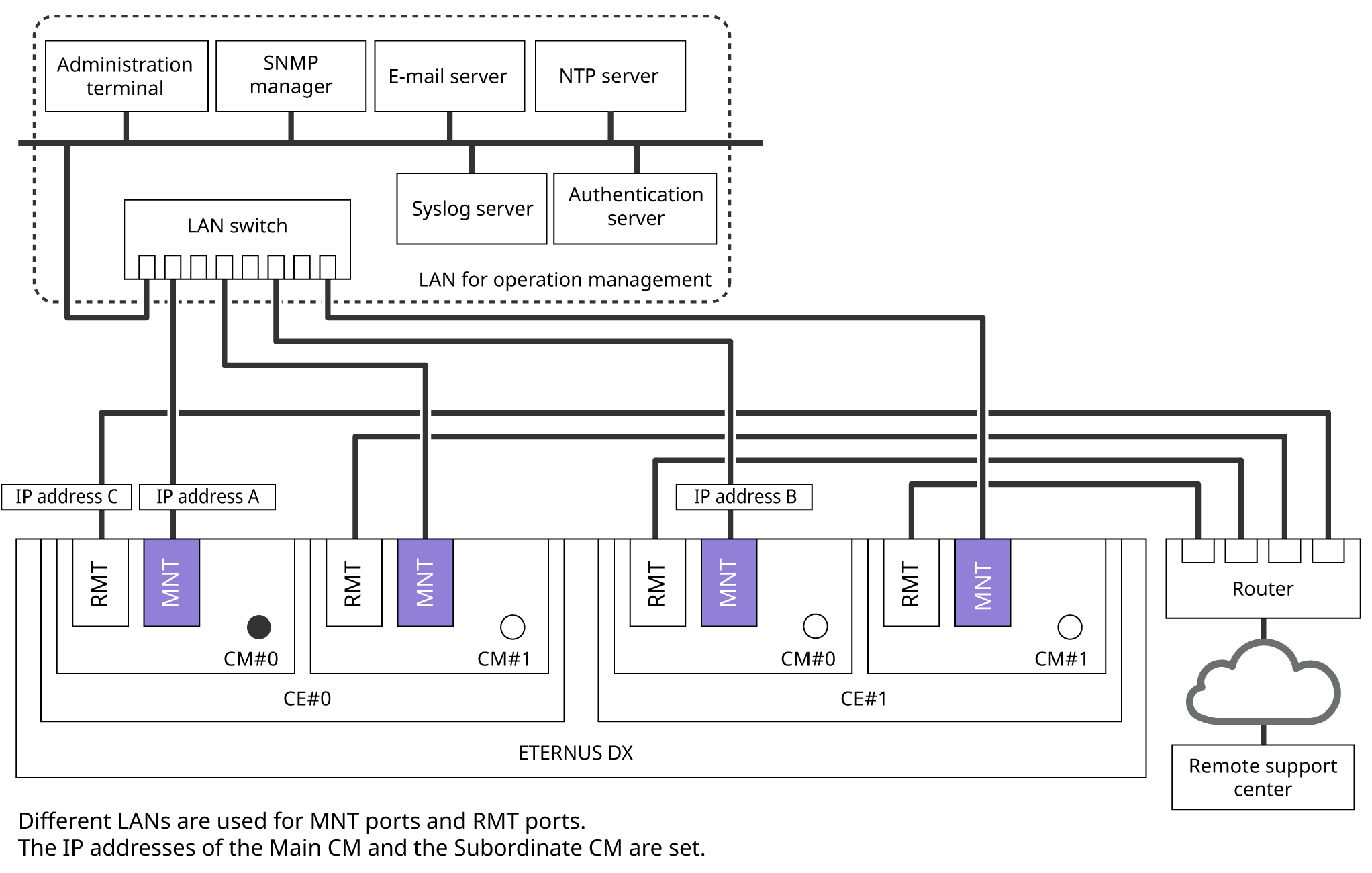

Figure: Connection Example with a Dedicated Remote Support Port

Note

The following figure provides connection examples and explains the necessary preparation for when the IP address of the Subordinate CM is set.

For the ETERNUS DX, three IP addresses are required (two IP addresses for the MNT ports and one IP address for the RMT port).

Figure: Connection Example When the IP Address of the LAN Subordinate CM Is Set (and a Dedicated Remote Support Port Is Used)
