ETERNUS DX900 S6 and ETERNUS DX8900 S6

Front View

This section provides the names of the components in the front of a frontend enclosure.

Figure: Front View of a Frontend Enclosure (with a Front Cover)

  1. System operation panel

    (Refer to System Operation Panel.)

  2. Front cover

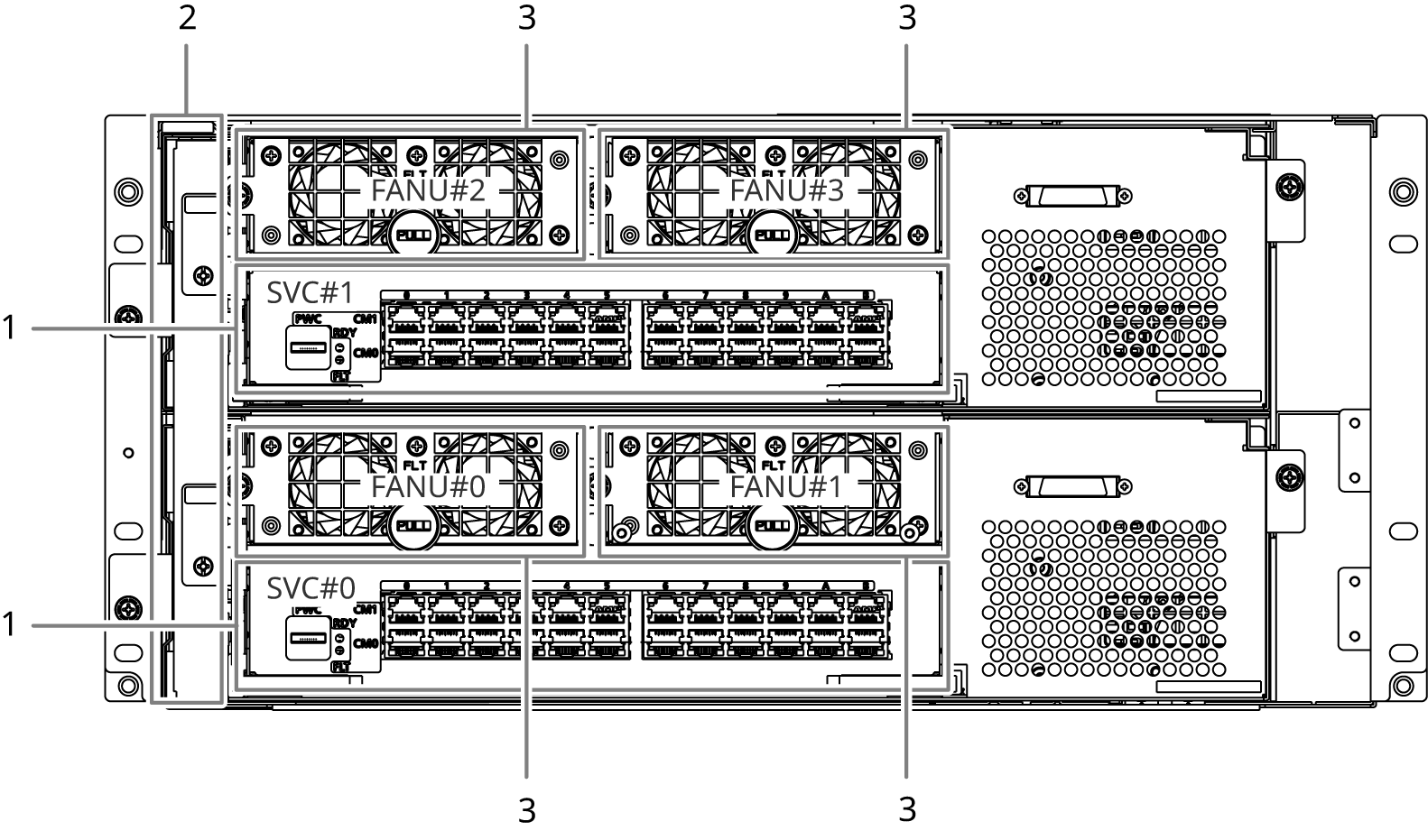

Figure: Front View of a Frontend Enclosure (without a Front Cover)

  1. SVC (SVC#0, SVC#1)

    (Refer to Service Controllers (SVC).)

  2. FEMP-BRG

  3. Fan unit (FANU#0, FANU#1, FANU#2, FANU#3)

    (Refer to Fan Unit.)

Rear View

This section provides the names of the components in the rear of a frontend enclosure.

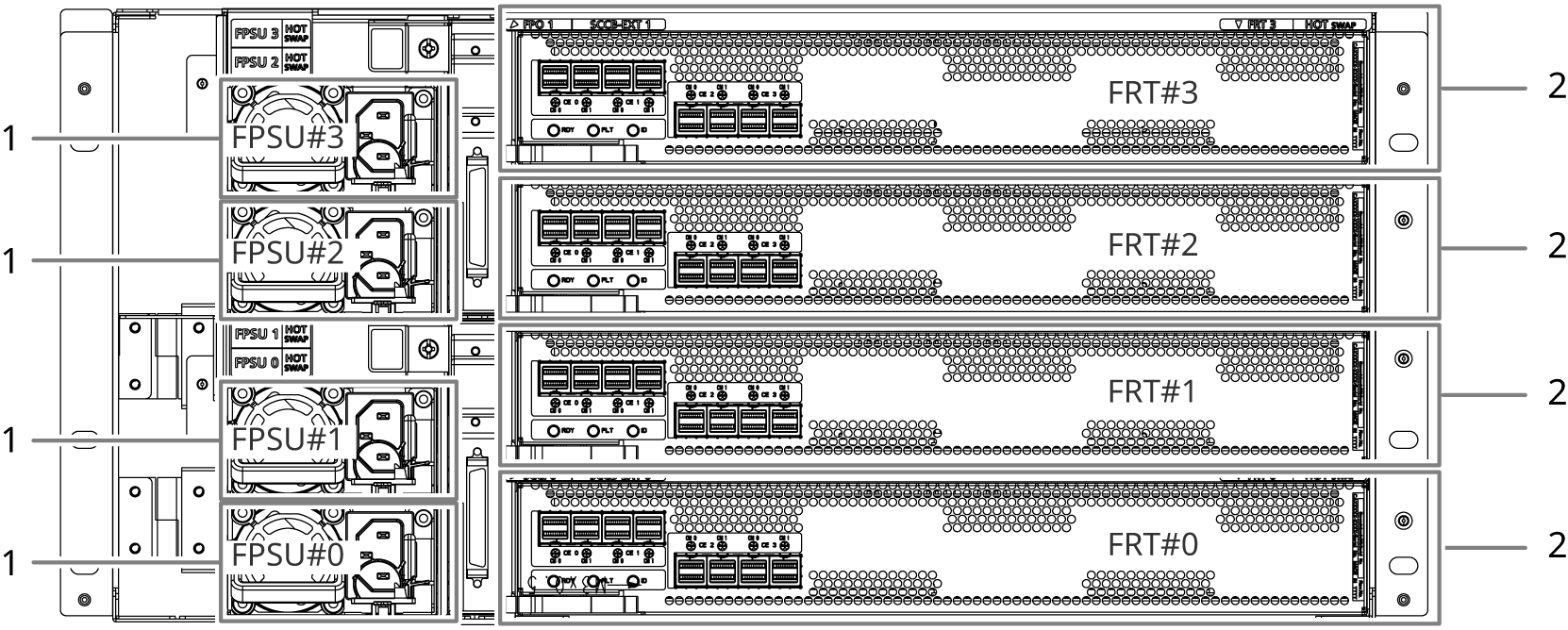

Figure: Rear View of a Frontend Enclosure (ETERNUS DX900 S6 and ETERNUS DX8900 S6 [with Four Controller Enclosures or Less])

  1. Power supply unit (FPSU#0, FPSU#1, FPSU#2, FPSU#3)

    (Refer to Power Supply Units.)

  2. Frontend router (FRT#0, FRT#1, FRT#2, FRT#3)

    (Refer to Frontend Routers (FRT).)

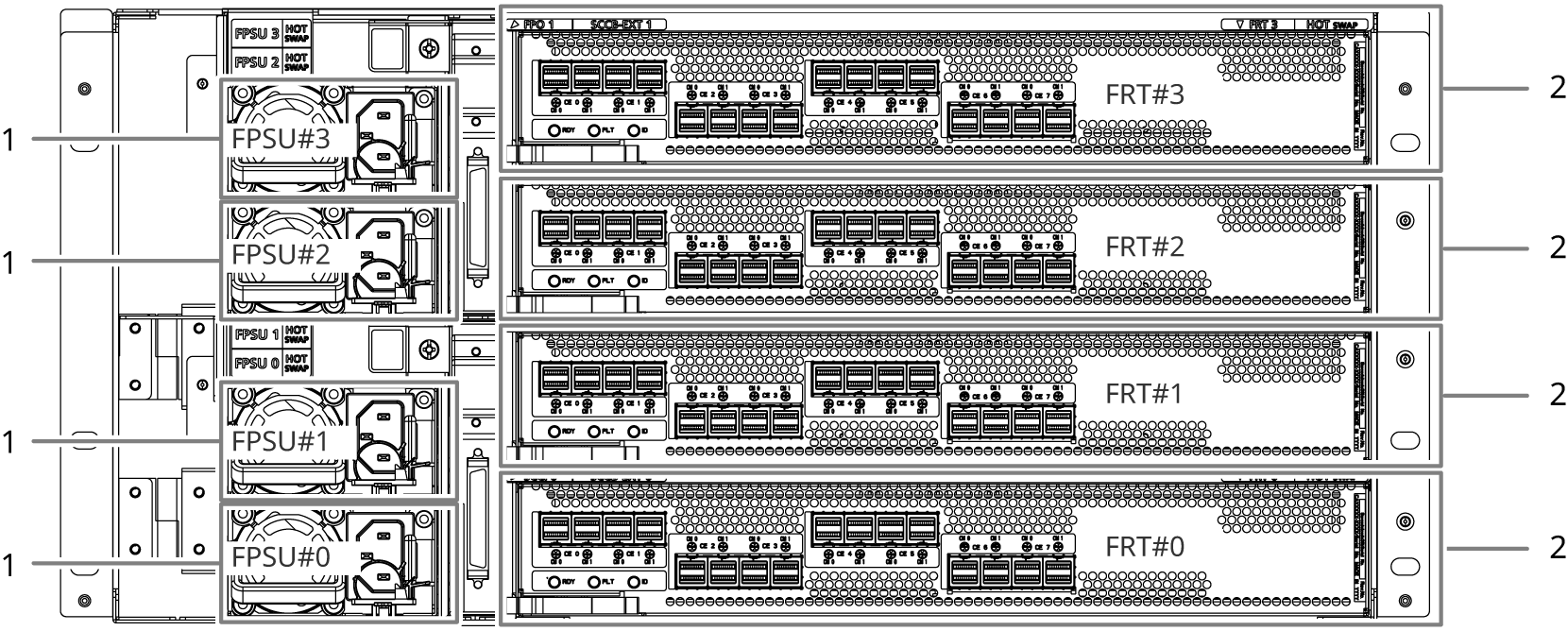

Figure: Rear View of a Frontend Enclosure (ETERNUS DX8900 S6 [with Five Controller Enclosures or More])

  1. Power supply unit (FPSU#0, FPSU#1, FPSU#2, FPSU#3)

    (Refer to Power Supply Units.)

  2. Frontend router (FRT#0, FRT#1, FRT#2, FRT#3)

    (Refer to Frontend Routers (FRT).)
