Record your SRP over InfiniBand configuration in ETERNUS AB/HB series - Linux
You can generate and print a PDF of this page, and then use the following worksheet to record SRP over InfiniBand storage configuration information. You need this information to perform provisioning tasks.
Host identifiers
| The initiator GUIDs are determined in the task, Determine host port GUIDs and make the recommended settings. |

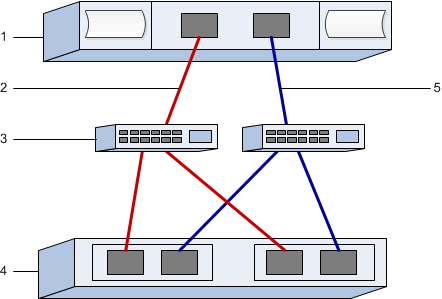

| Callout No. | Host (initiator) port connections | GUID |
|---|---|---|
1 |
Host |
not applicable |
3 |
Switch |
not applicable |
4 |
Target (storage array) |
not applicable |
2 |
Host port 1 to IB switch 1 ("A" path) |
|
5 |
Host port 2 to IB switch 2 ("B" path) |
Recommended configuration
Recommended configurations consist of two initiator ports and four target ports.
Mapping host name
| The mapping host name is created during the workflow. |
Mapping host name |
|
Host OS type |
