Series port assignments for Cisco 3132Q-V switches
The port usage in a MetroCluster IP configuration depends on the switch model and platform type.
Review these guidelines before using the tables:
-
For all other connections, you can use the port usage assignments listed in the tables.
Choose the correct cabling table for your configuration
Use the following table to determine which cabling table you should follow.
| If your system is… | Use this cabling table… |
|---|---|
ETERNUS AX2100 ETERNUS HX2200 |

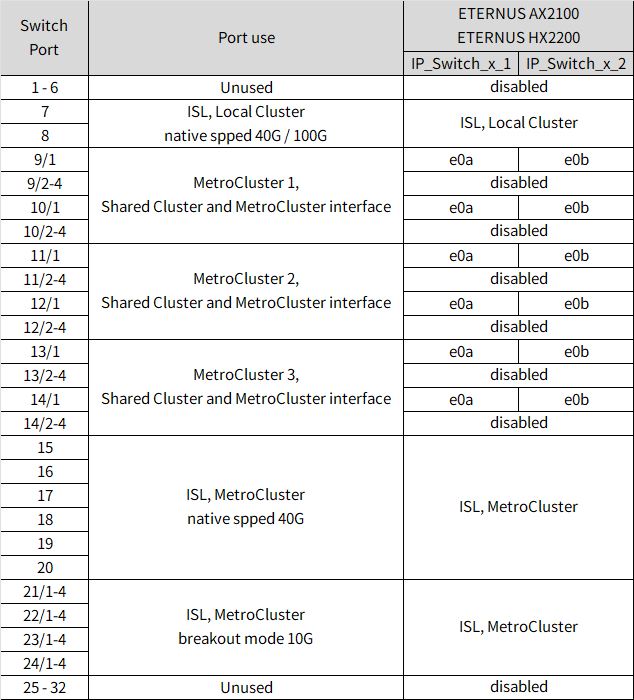

Review the platform port assignments to cable a ETERNUS AX2100 or ETERNUS HX2200 system to a Cisco 3132Q-V switch:
